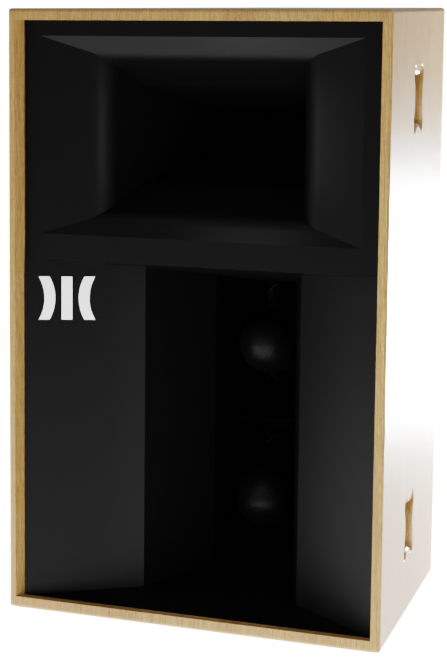

M-4
High output point source element
- 2x10" high-performance European Neodymium drivers
- 1x1.4" Coaxial compression driver
- Very high efficiency
- Covexa™ constant directivity waveguide
- Arrayable for full horizontal coverage
- Tilt boards available for ground-stacked setup
| Power handling 2x10" | 800W AES, 3200W peak |
| Power handling 1.4" | 110W AES, 440W peak |
| Impedance 10" | 1 x 8ohm nominal |
| Impedance 1.4" | 1 x 16ohm nominal |
| Bandwidth | 165hz to 18khz (-3db) |
| Sensitivity 10" | 109db (1W/1m) |
| Sensitivity 1.4" | 113db (1W/1m) |
| Dispersion | 40° x 30° (H x V) |
| Max SPL | 138db continuous, 144db peak |
| Weight | 62kg |
| Dimensions | W: 660mm H: 978mm D: 609mm |
